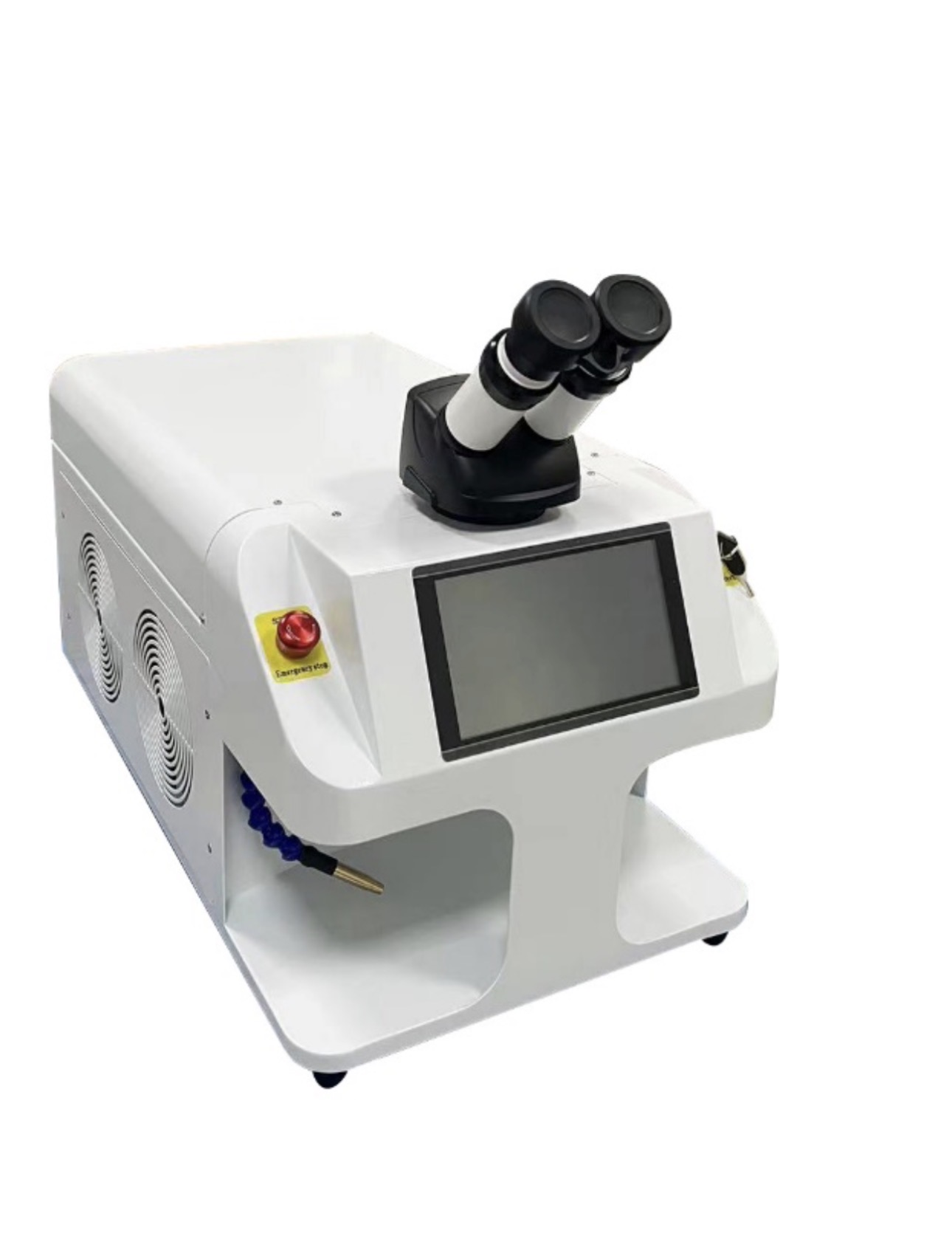

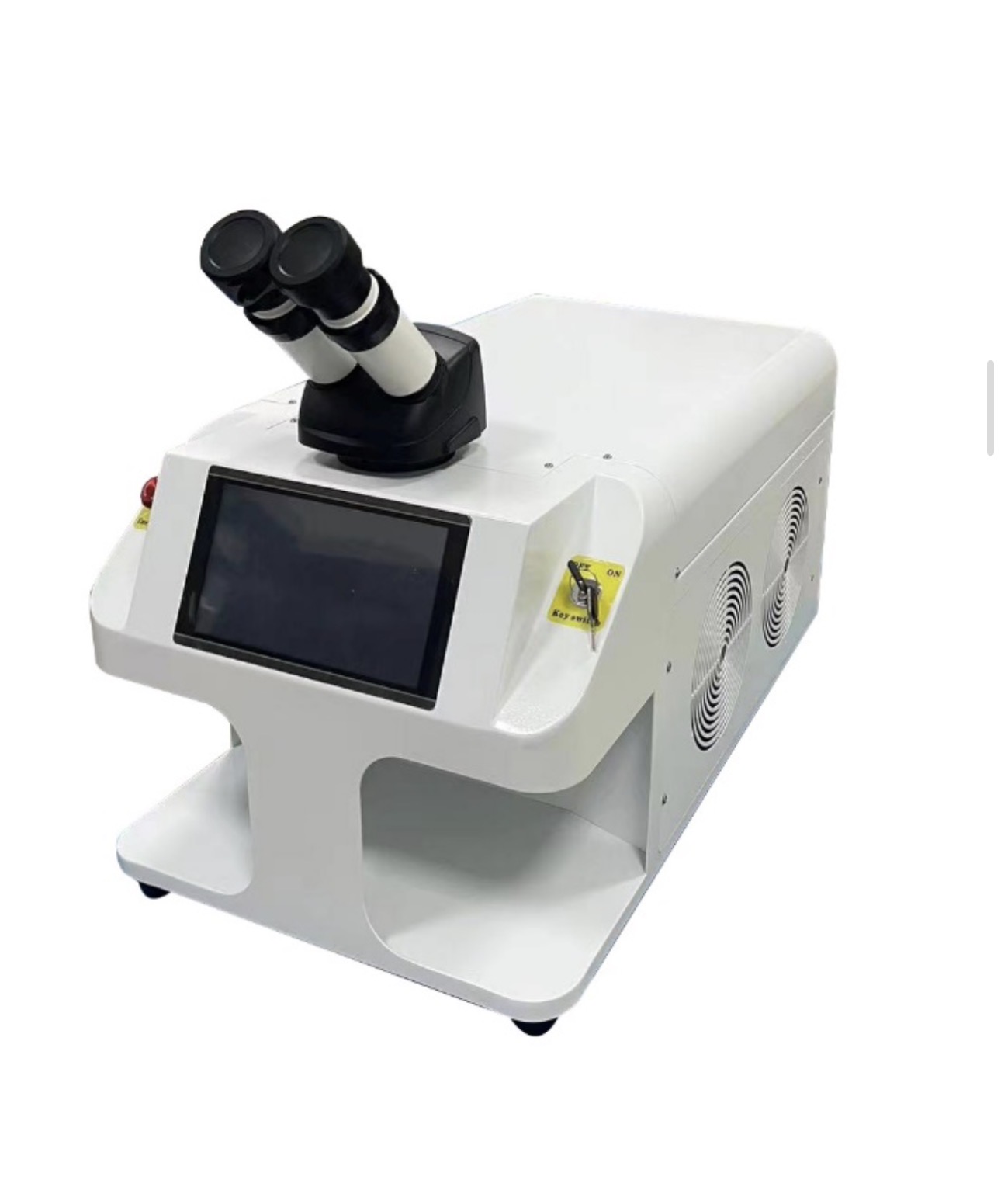

200W laser welding machine
Spot laser welding machine suitable for jewellery and watch makers
Price on Request
Specifications
| Input power | AC220V/50Hz |
| pulse current | 1-200A |
| Output power limitation | 6KW |
| xenon lamp | X8*100*165 With wire 200mm5*20 connector |
| tank capacity | 4L |
| monitor | CCD, microscope |
| Net weight | 33KG |
Product Details
Jewelry laser spot welder is the application of high-energy pulse laser to the object welding, through the laser power to xenon lamp pulse discharge,Light waves of a certain frequency and pulse width are radiated to Nd3+:YAG crystals through the condensing cavity , The crystal emits a 1064nm pulsed laser after resonance, and then through beam expansion, reflection, focusing after welding, Commonly used in jewelry industry, it is also known as Jewelry laser spot we
