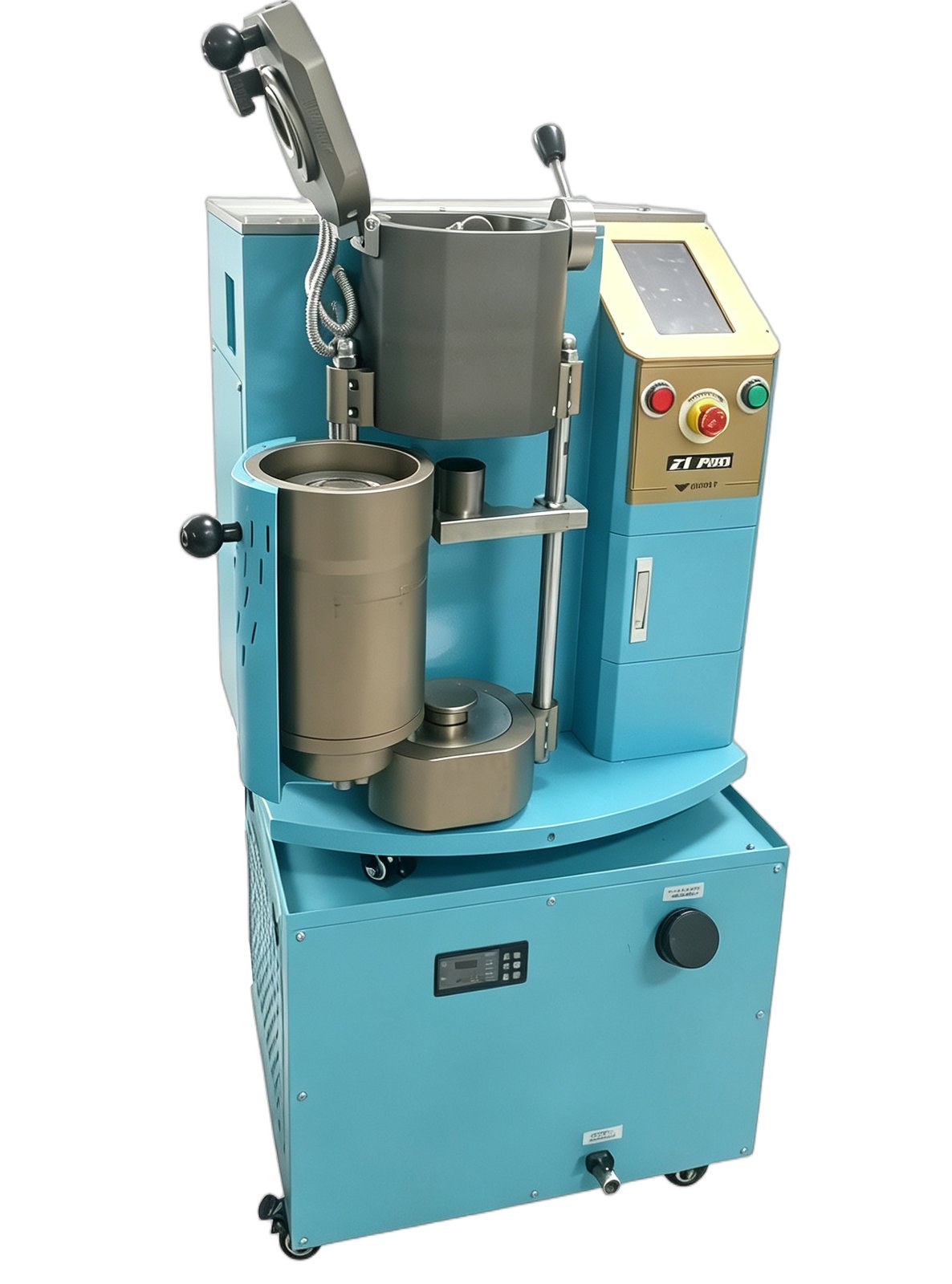

Z1 Vacuum Casting Machine
Compact vacuum casting machine for jewelry workshops — precise temperature control up to 1150°C with a small production-floor footprint.
Price on Request
Specifications
| Model | Z1 |
| Power Supply | 220V Single Phase, 50/60Hz, 3kW |
| Melting Capacity | ≤1kg Gold |
| Temperature Range | 0–1150°C (±2°C, PID control) |
| Max Pressure | 0.3MPa chamber / -0.1MPa vacuum |
| Flask Size | 3" to 7" (flexible configuration) |
| Cooling Method | Water cooling |
| Net Weight | 84 kg |
Product Details

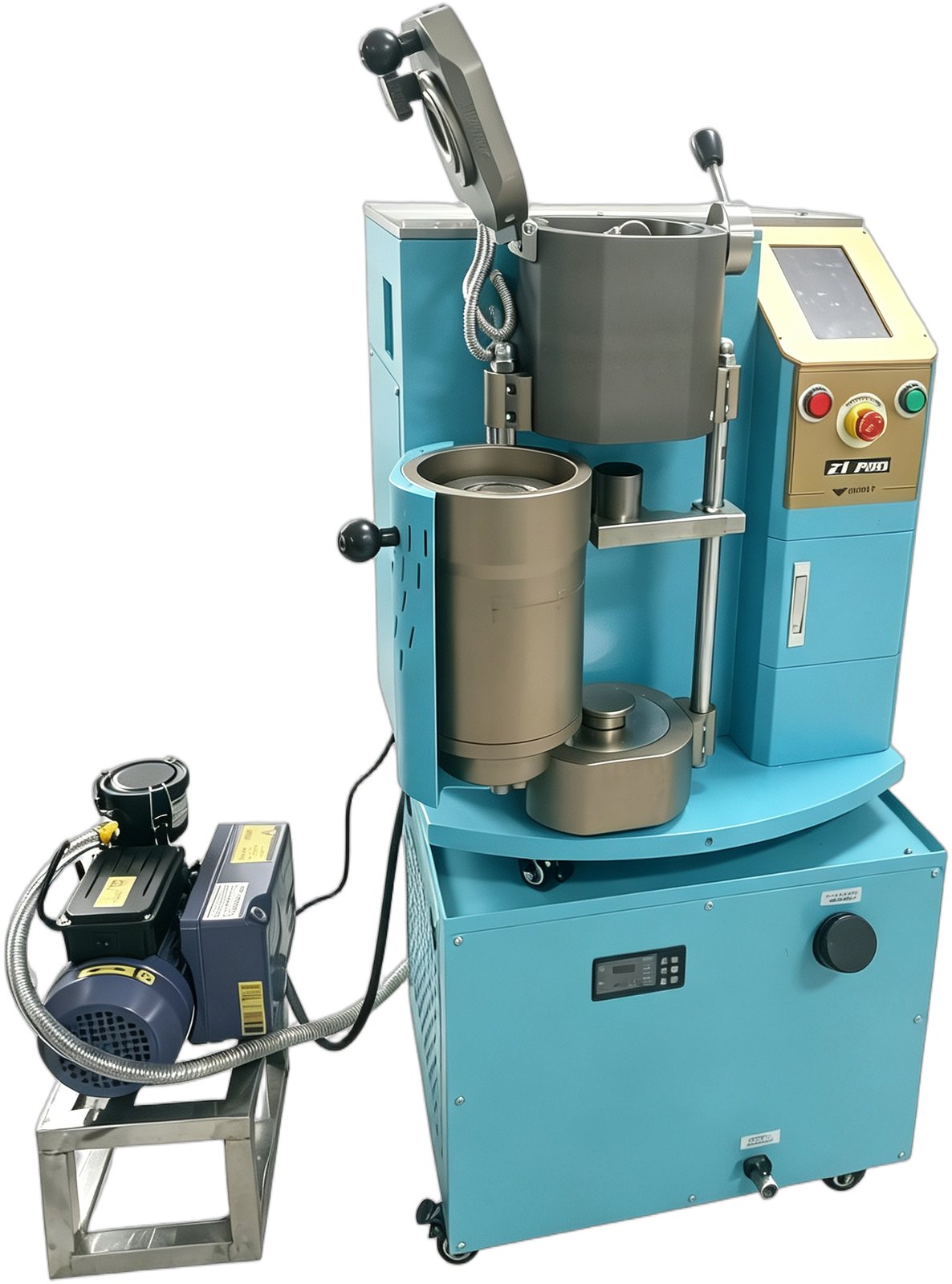

The Z1 is a compact vacuum induction casting machine built for jewelry workshops that need reliable, repeatable casting without a large equipment footprint. PID-controlled heating holds temperature within ±2°C, and the paired vacuum pump ensures clean, bubble-free castings.
- PID temperature control accurate to ±2°C
- Flexible flask configuration from 3" to 7"
- Water-cooled for continuous production runs
- Compact footprint suited to any workshop
