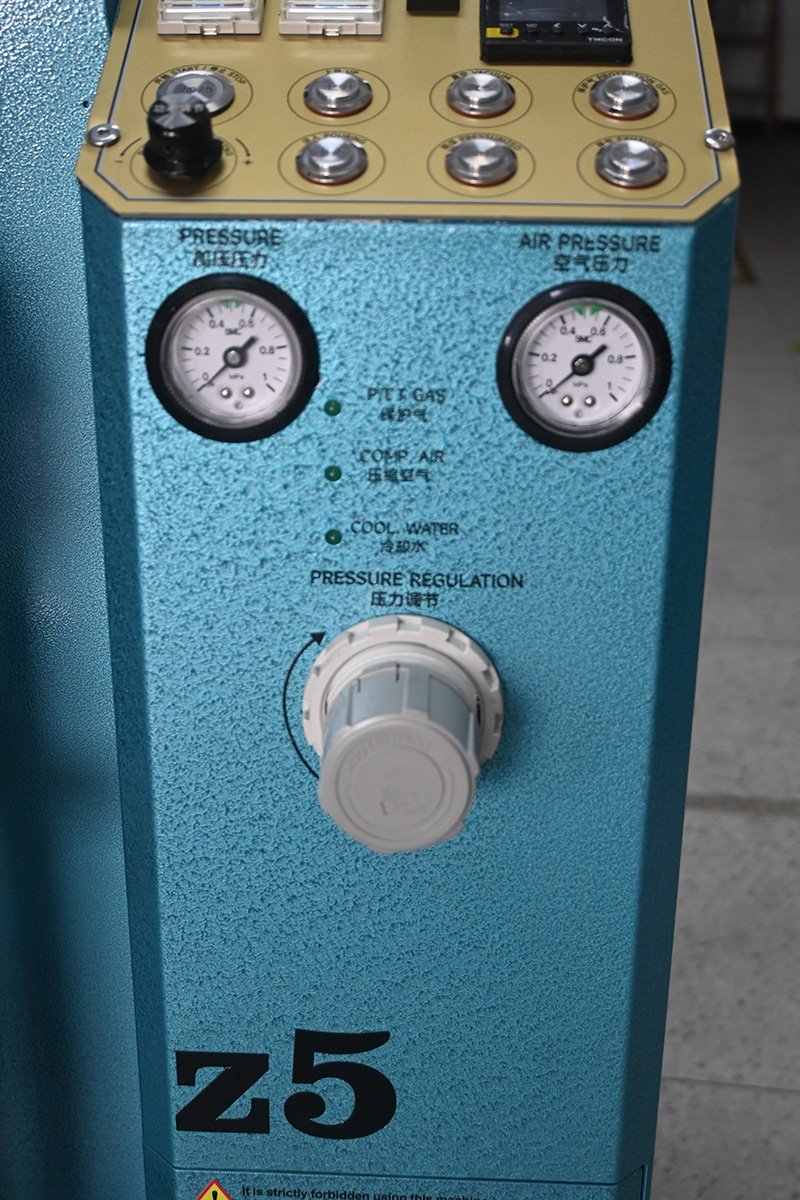

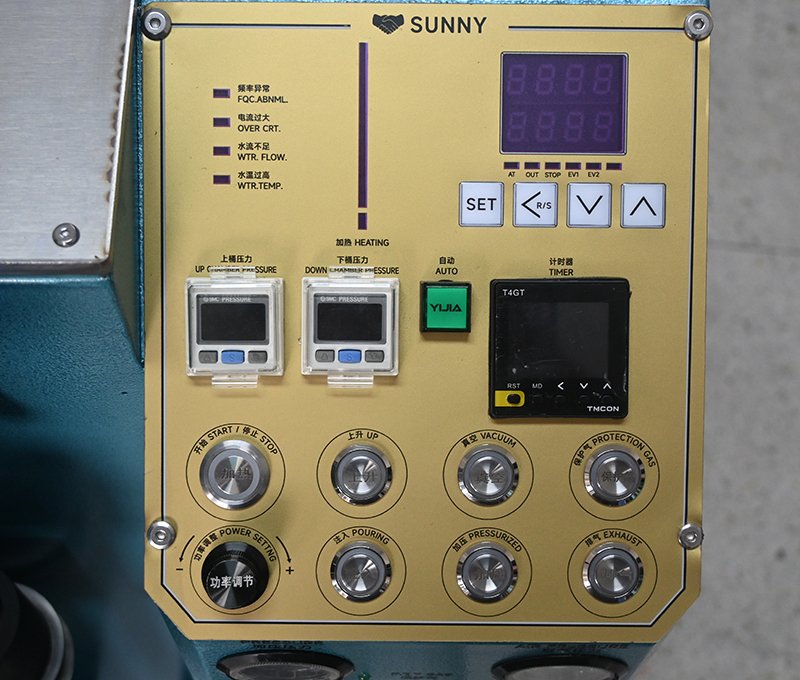

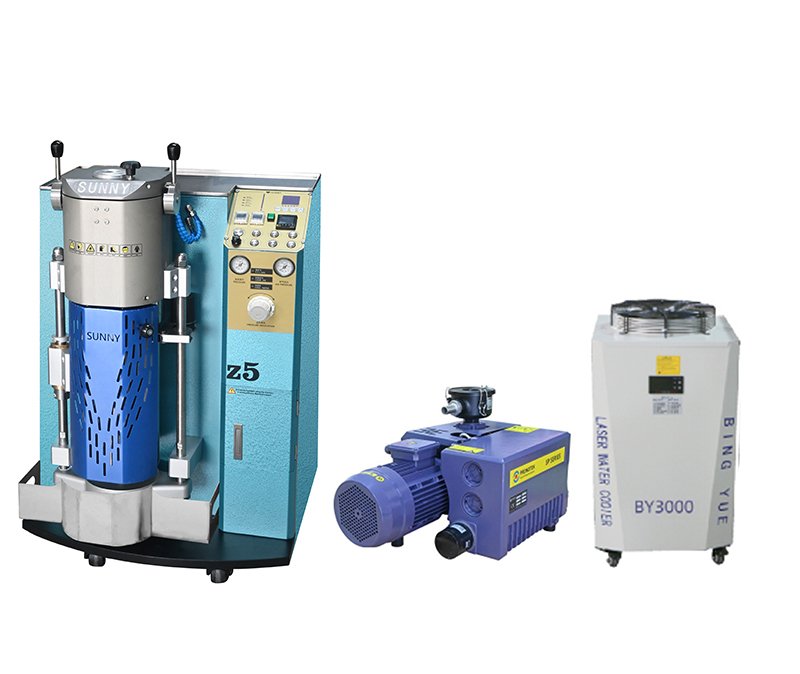

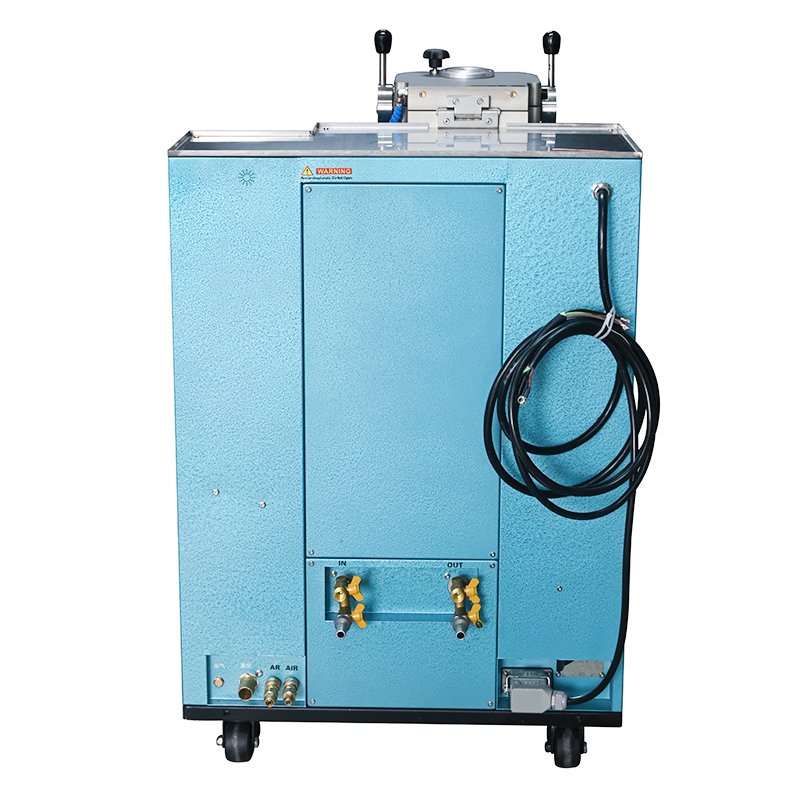

Z5 Semi-Automatic Casting Machine
Semi-automatic vacuum pressure casting machine handling gold, silver, and copper with a 6"×11" max flask size.
Price on Request
Specifications
| Model | Z5 Semi-Automatic Casting Machine |
| Power Supply | 380V, three-phase, 50/60Hz |
| Output Power | 15 kW |
| Metal Categories | Gold, Silver, Copper |
| Melting Capacity | 5kg of gold |
| Flask Size (Max) | 6" × 11" |
| Max Pressurization | 0.3 MPa |
| Temperature Range | 0–1150°C (K type) / 0–1400°C (R type) |
| Cooling Method | Water-cooled |
| Gas | Argon or nitrogen |
| Net Weight | 185 kg |
| Dimensions | 710 × 700 × 1100 mm |
Product Details
The Z5 combines vacuum suction, clamping, and pressurization casting methods in one semi-automatic machine. It supports gold, silver, and copper with two selectable temperature ranges, making it a versatile choice for mixed-metal production.
- Vacuum suction, clamping, and pressurization casting
- Dual temperature range for different alloy types
- Argon or nitrogen gas compatible
- External vacuum pump support >100m³/H
